Reed-Relays

With Sanyu Electric, Nucletron represents the technology leader in the reed relay market. The broad range of special reed relays ensures signal level, high current and high voltage applications can be handled extremely safely and precisely. Typical applications are automatic test systems (ATE), measurement and testing laboratories, for example for sensor calibration or measuring susceptibility of components and devices.

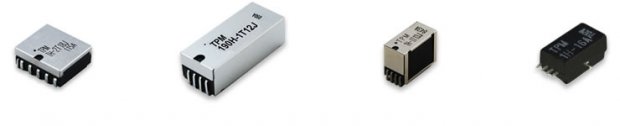

Surface Mount

Miniature Surface Mount Reed Relays >>

High Breakdown Voltage

High Breakdown Voltage Reed Relays >>

High Temperature Reed Relays

High Temperature Reed Relay ranges from -20C up to + 155C >>

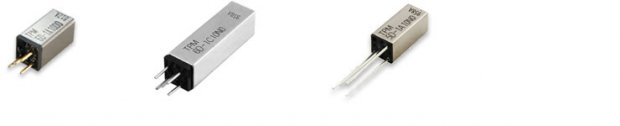

High Density

Reed Relay for mounting space smaller than 5×5mm. Suitable for complex high density switching matrices. >>

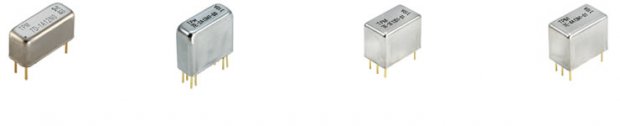

Miniature PCB Through Hole

Miniature reed relays in THT with MTBF ratings up to 1000 × 10⁶ cycles. >>

Standard PCB Through Hole

Reed Relay in standard size for PCB. Coaxial shielded available. >>

PCB Wet Reed

Mercury wetted Reed Relays operate without switch bounce. Package allows flexible mounting orientation. >>

EMF Low Thermal

Reed Relays with electrostatic shielding as standard feature. >>

High Insulation / Dry

High insulation resistance (up to 10¹³ Ohm) are ideal for DC measurement and DC parametric tests >>

High Insulation / Wet

Mercury Reed Relays with high insulation resistance up to 10¹³ Ohm. >>

High Insulation / High Voltage

Series 137D switches up to 3.5kV >>

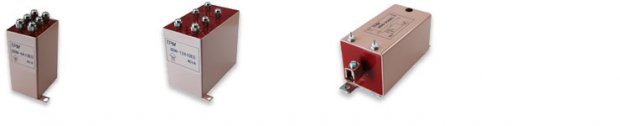

High Current

Reed Relays for Power-Switching up to 500Watt ideal for IGBT and FET testing >>

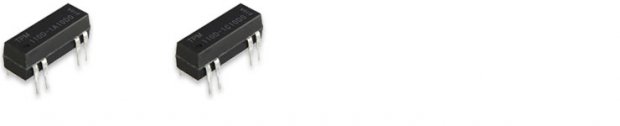

DIP / Dual In-Line Package

Reed Relay with DIP Packaging for a wide range of industrial applications. >>

SIP / Single In-Line Package

Reed Relay with SIP- pinning for various applications. Available with Shielding and optional integrated Diode. >>

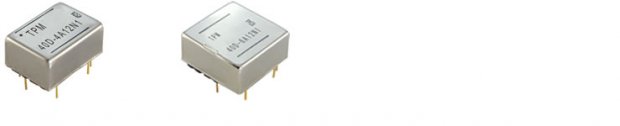

Multiplexer

Individual coils for each contact. Coaxial shielding for frequencies up to 2,5GHz. >>
